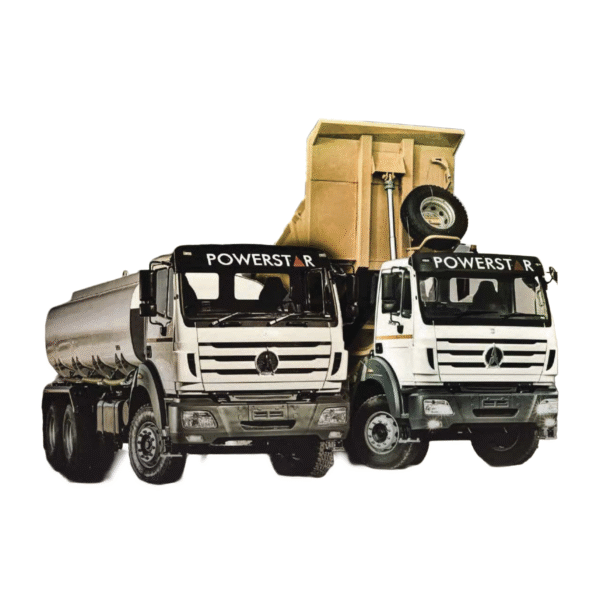

VX 2628 6×4 LWB & SWB Chassis Cab
The VX 2628 6×4 Chassis Cab is a robust, heavy-duty truck engineered for custom body applications including tippers, tankers, mixers, and freight boxes. Powered by the Weichai WP10.290 E32 Euro II engine, it delivers 280 HP and 1160 Nm of torque, providing dependable pulling power across varied terrain.
Its 12-speed FAST synchromesh transmission, combined with heavy-duty hub reduction axles, leaf spring suspension, and a full air braking system (with ABS and EVB), ensures safe and powerful operation under full load. The hydraulic tiltable day cab, rugged chassis design, and dual configuration (LWB & SWB) offer flexibility to adapt to fleet requirements. With a GVM of 26,000 kg and GCM of 43,000 kg, it’s built for Africa’s toughest routes.
📊 Specifications Table
| Category | Specification | Notes |
|---|---|---|
| Engine | Weichai WP10.290 E32 (Euro II) | Turbocharged, Intercooled |
| Max Power | 213 kW @ 2200 rpm (280 HP) | Heavy-duty rated |
| Max Torque | 1160 Nm @ 1200–1600 rpm | Excellent torque curve |
| Displacement | 9.726 L | Long-life engine block |
| Compression Ratio | 17:1 | Efficient combustion |
| Transmission | FAST 12JS160T + QH50 | 12-speed synchromesh |
| Clutch | GFX 430 mm, single dry frictional disc | Pull-type diaphragm spring |
| Fuel Tank Capacity | 400 L | Long range between refuels |
| Braking System | Dual circuit air + spring parking + ABS + EVB | Safe braking on all terrains |
| Suspension | Front: Stabilized leaf spring w/ shock Rear: 13-leaf spring pack | Heavy-duty load handling |
| Front Axle | VR4/01D-7.5 | Hydraulic shock absorbers included |
| Rear Axle | HD7/016DGS – HL7/015DS-13, hub reduction | 4.769 ratio |
| Tyres | 315/80R22.5 (including spare) | High-load rated |
| Electrical System | Alternator: 70A Starter: 5.58 kW Batteries: 2 × 12V–120Ah | Robust electrical foundation |
| Top Speed | 90 km/h (Limited to 80 km/h) | Legal compliance in most regions |
| Gradeability @ GVM | 30% | Strong hill-start capability |
| Final Drive Ratio | 4.769 | High torque at wheels |
📏 Dimensions
| Parameter | SWB | LWB |
|---|---|---|
| Overall Length (OL) | 7,680 mm | 9,390 mm |
| Wheelbase (WB) | 4,175 mm | 5,175 mm |
| Rear Overhang (ROH) | 1,350 mm | 1,940 mm |
| Cab to Rear Axle (CA) | 3,735 mm | 4,735 mm |
| Shared Dimensions | Value |
|---|---|
| Overall Width (OW) | 2,495 mm |
| Overall Height (OH) | 3,085 mm |
| Front Overhang (FOH) | 1,435 mm |
| Bumper to Back of Cab | 1,880 mm |
| Turning Radius | 8,500 mm |
⚖️ Mass Ratings
| Parameter | Value (kg) |
|---|---|
| Gross Vehicle Mass (GVM) | 26,000 |
| Gross Combination Mass (GCM) | 43,000 |
| Front Axle Mass (Rated) | 7,500 |
| Rear Axle Mass (Rated) | 26,000 |
| Permissible Rear Axle Load | 18,000 |
| Unladen Front Axle Mass | 4,140 |
| Unladen Rear Axle Mass | 4,540 |
| Total Unladen Mass | 8,680 |
🛠️ Key Features:
Available in LWB & SWB Configurations
280 HP Engine with Strong Torque Band
Hub Reduction Axles with Leaf Spring Suspension
12-Speed FAST Transmission for Efficiency
Hydraulic Tiltable Day Cab
GCM of 43,000 kg – Built for Versatile Body Fitment
