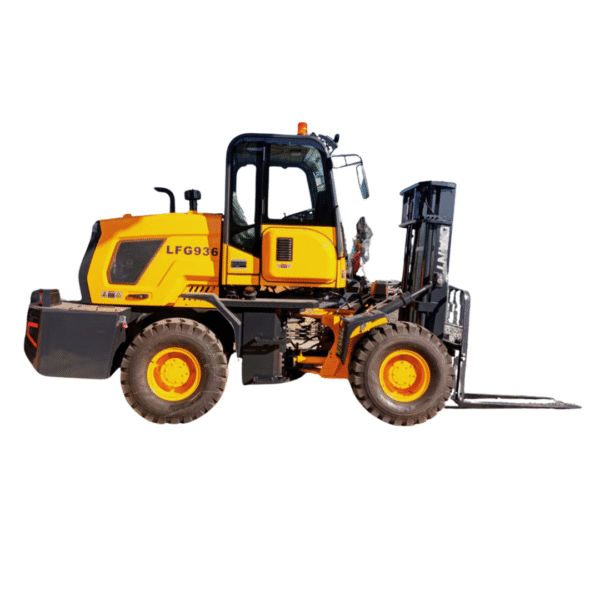

The GIANT LFG936 is a robust forklift loader designed for heavy-duty applications in industrial and construction environments. Powered by a YN27T engine producing 78HP, it offers strong lifting capabilities, superior traction, and dependable operation. With a 3000kg rated load capacity and a 2-stage lift reaching up to 3 meters, this machine ensures efficient material handling even in the most demanding conditions. The LFG936 features a reinforced chassis, spacious operator cabin, and precision-engineered components for enhanced safety, durability, and ease of use.
Specifications
| Feature | Details |
|---|---|
| Engine | YN27T (58kW/78HP), 270 Displacement |
| Transmission Case | 265B Siamese |
| Axle | Bridge Axle |
| Tyre | 20.5-16 |
| Rated Load Capacity | 3000kg |
| Operating Mass | 4100kg |
| Dimensions (L×W×H) | 6145 × 1826 × 2205 mm |
| Cylinder Size | 40/55 mm |
| Cylinder Suze (likely typo) | 35/70 mm |
| Hinge Plate | 25/20 mm |
| Wheel Track | 1490 mm |
| Wheelbase | 1980 mm |
| Clearance Height of Gantry | 2110 mm |
| Gate Gantry Inclination | 6° / 12° |
| Max Lift Height of Forks | 2950 mm |
| Fork (T×W×L) | 45 × 120 × 1220 mm |
| Load Centre Distance | 610 mm |
| Minimum Ground Clearance | 150 mm |
| Lift | 2 Stage, 3m |
